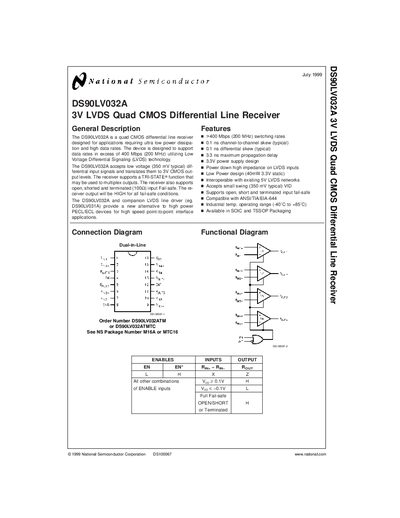

DS90LV032A is a 3V LVDS quad CMOS differential line receiver from Texas Instruments (TI). It uses low voltage differential signaling (LVDS) technology and supports data rates of more than 400 Mbps (200 MHz). DS90LV032A receives low voltage (350 mV) differential input signals and converts them to 3V CMOS output levels. The receiver supports TRI-STATE® function that can be used for multiplexing outputs. The receiver also supports open, shorted, and terminated (100 Ω) input fail-safe. The receiver output will be high for all fail-safe conditions. DS90LV032A and companion LVDS line driver (e.g. DS90LV031A) provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.
The DS90LV032A quad CMOS differential line receiver is designed for ultra‑low power dissipation and high‑speed LVDS applications. It accepts low‑voltage differential inputs (350 mV typical) and provides 3.3 V CMOS outputs, supporting fail‑safe modes such as open, shorted, and terminated inputs.
The device operates from a 3.0 V–3.6 V supply, draws only 40 mW static power, and meets industrial temperature specifications (‑40 °C to +85 °C). Detailed electrical characteristics, switching performance, and application guidelines are provided, along with recommended PCB layout and power‑decoupling practices.
| Maximum data rate | >400 Mbps (200 MHz) |
|---|---|
| Static power consumption | 40 mW (3.3 V) |
| Supply voltage options | 3.0 V, 3.3 V, 3.6 V |
| Maximum propagation delay | 3.3 ns |
| Operating temperature range | ‑40 °C to +85 °C |
| Package types | SOIC (M16A) and TSSOP (MTC16) |
The receiver supports data rates in excess of 400 Mbps (200 MHz).
It can be powered from 3.0 V, 3.3 V, or 3.6 V supplies.
It is specified for industrial temperatures from –40 °C to +85 °C.
