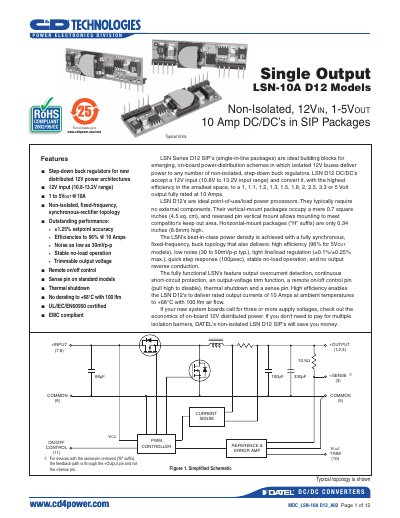

MURATA POWER SOLUTIONS Single Output LSN-10A D12 Models Features Non-Isolated 12VIN 1-5VOUT 10 Amp DC/DC s in SIP Packages
The LSN‑10A D12 series provides a single‑output, non‑isolated step‑down converter that accepts a 12 V input (10.8‑13.2 V range) and delivers selectable output voltages from 1 V to 5 V at a full‑load current of 10 A. The devices are offered in a compact 0.7 sq in (4.5 cm²) vertical‑mount SIP package, with an optional low‑profile horizontal‑mount version.
Key functional features include a fully synchronous fixed‑frequency buck topology, remote on/off control, output‑voltage trimming (±10 %), over‑current detection with hiccup shutdown, and thermal shutdown at +115 °C. The converters achieve up to 96 % efficiency (5 V model) and exhibit low output noise of 30‑50 mVp‑p. This manual is written in Chinese.
Murata LSN-10A specifications
| Input voltage range | 10.8‑13.2 V |
|---|---|
| Rated output current | 10 A |
| Efficiency (5 V model) | up to 96 % |
| Output ripple/noise | 30‑50 mVp‑p |
| Line/load regulation | ±0.1 % line, ±0.25 % load |
| Package size (vertical mount) | 0.7 sq in (4.5 cm²) |
| Thermal shutdown temperature | +115 °C |
| MTBF (typical) | 2.3‑1.8 million hours |
All Murata LSN-10A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the LSN‑10A D12?
The converter operates with an input voltage from 10.8 V to 13.2 V (12 V nominal).
What is the typical efficiency of the 5 V output model?
The 5 V output version can reach up to 96 % efficiency at full load.
What input voltage range does the LSN-10A D5 series accept?
The converters operate with an input voltage from 4.5 V to 5.5 V (5 V nominal).
How much output current can the LSN-10A D5 deliver?
Each device can supply up to 10 A of continuous output current.
