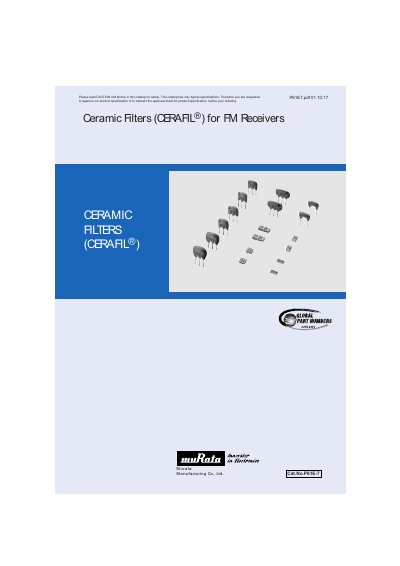

This document is the product catalog of Murata's ceramic filters (CERAFIL), providing information on product models, features, and characteristics.
The catalog lists Murata's CERAFIL ceramic filter series for FM receivers, including the SFECV and SFECS chip types. It details part numbers, center frequencies, bandwidths, and attenuation characteristics, as well as standard land‑pattern dimensions.
Handling and reliability information is also provided, covering reflow soldering conditions, mechanical stress limits, temperature ranges, and export control restrictions for high‑reliability applications.
| Thickness | 1.5 mm |
|---|---|
| Operating temperature range | -20 °C to +80 °C |
| Storage temperature range | -40 °C to +85 °C |
| Center frequency (example part) | 10.700 MHz |
| Attenuation (within) | ≤ 20 dB |
The SFECV series filters are only 1.5 mm thick.
Yes, they can be reflow soldered because of their excellent heat resistance.
No, the component cannot be washed.
The filters operate from –20 °C to +80 °C and can be stored from –40 °C to +85 °C.
