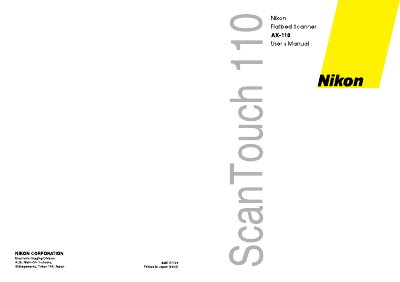

The Nikon ScanTouch 110 User's Manual is a guide for using the flatbed scanner, providing information on the features and characteristics of the product.
This manual explains how to unpack, install, and safely operate the Nikon ScanTouch 110 flatbed scanner. It includes power‑supply precautions, connection steps for SCSI, and guidance on using optional accessories such as the transparency adapter and auto‑document feeder.
Additional sections cover routine maintenance, troubleshooting, and detailed technical specifications like scan speed, optical resolution, power requirements, and physical dimensions.
| Optical Resolution | 300 x 600 dpi (optical), up to 4800 x 4800 dpi via interpolation |
|---|---|
| Maximum Scannable Area | 216 x 297 mm (8.5 x 11.7 inches) |
| Scan Speed (Color A4 @ 300 dpi) | 24 seconds per A4 sheet |
| Power Requirements | 100‑240 V AC, 50/60 Hz, max 52 W |
| Interface | Built‑in SCSI‑2 (25‑pin and 50‑pin connectors) |
| Dimensions | 13.3 W × 21.0 D × 5.7 H inches (336 × 534.5 × 144 mm) |
| Net Weight | 17.4 lb (7.9 kg) |
The scanner provides an optical resolution of 300 × 600 dpi, and can reach up to 4800 × 4800 dpi through software interpolation.
A color A4 document at 300 dpi is scanned in approximately 24 seconds.
The unit can be powered from AC 100‑120 V or AC 200‑240 V, 50/60 Hz, with a suitable grounded outlet.
The scanner can handle documents up to 216 mm × 297 mm (8.5 × 11.7 inches).
