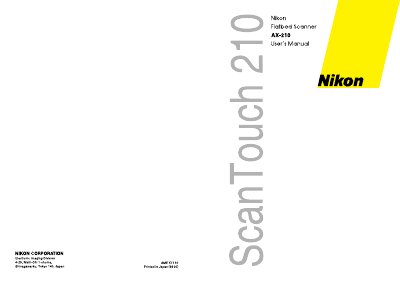

This user manual introduces the features and usage of Nikon ScanTouch 210 flatbed scanner
This manual explains how to unpack, install, and operate the Nikon AX-210 (ScanTouch 210) flatbed scanner. It includes safety precautions, power requirements, and connection instructions for both Macintosh and IBM PC/AT compatible computers.
Additional sections cover scanning procedures, optional accessories such as the transparency adapter and auto document feeder, maintenance tips, troubleshooting, and detailed technical specifications.
| Optical Resolution | 600 x 1200 dpi |
|---|---|
| Maximum Scannable Area | 216 x 297 mm (8.5 x 11.7 inches) |
| Scan Speed (A4, 600 dpi, Color) | 31.2 seconds |
| Interface | Built‑in SCSI‑2 (25‑pin and 50‑pin connectors) |
| Power Requirements | 100‑240 V AC, 50/60 Hz, max 60 W |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Relative Humidity | 10 % to 85 % |
| Dimensions | 13.3 x 21.0 x 5.7 in (336 x 534.5 x 144 mm) |
| Net Weight | 17.4 lbs (7.9 kg) |
It can be powered from AC 100‑120 V or AC 200‑240 V, 50/60 Hz, using the appropriate power cord.
The scanner requires about 31.2 seconds per A4 page at 600 dpi in color mode.
It uses a built‑in SCSI‑2 interface with both a 25‑pin and a 50‑pin connector.
The scanner operates between 10 °C and 35 °C (50 °F to 95 °F).
