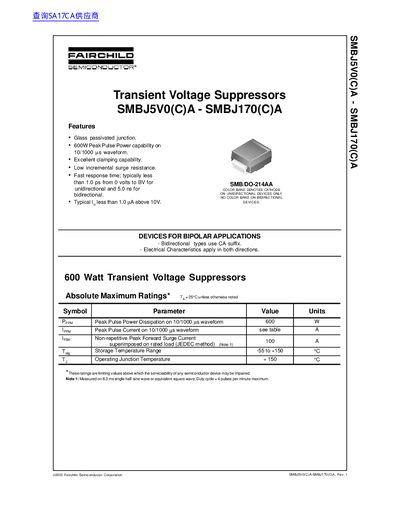

This file is about the absolute maximum ratings of the SMBJ5V0(C)A-SMBJ170(C)A transient voltage suppressor. The product has a peak pulse power dissipation of 600W, a non-repetitive peak forward surge current of 100A, a storage temperature range of -55 to +150°C and an operating junction temperature of +150°C.
The SMBJ5V0(C)A‑SMBJ170(C)A series are glass‑passivated transient voltage suppressors offering high peak pulse power capability (600 W) and fast response times. They are available in both unidirectional and bidirectional versions, with color‑band markings for unidirectional devices and a "C" suffix for bidirectional parts.
Key ratings include a storage temperature range of –55 °C to +150 °C, an operating junction temperature up to +150 °C, and a non‑repetitive forward surge current of 100 A. Electrical characteristics such as stand‑off voltage, peak pulse current, and leakage current are provided for each part number in the series.
| Peak Pulse Power Dissipation (10/1000 µs) | 600 W |
|---|---|
| Storage Temperature Range | -55 °C to +150 °C |
| Operating Junction Temperature | +150 °C |
The series can handle a peak pulse power of 600 W on a 10/1000 µs waveform.
They can be stored from –55 °C up to +150 °C.
Yes, bidirectional types use the "C" suffix, while unidirectional devices have a color band denoting the cathode.
