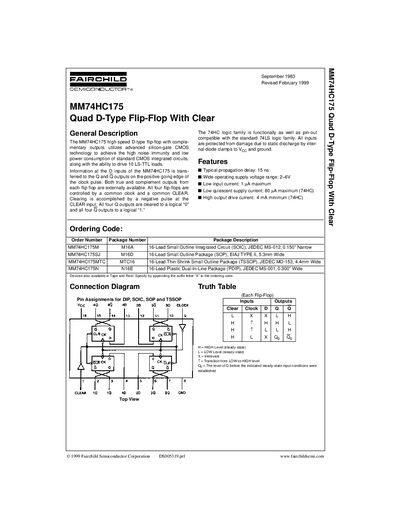

The MM74HC175 is a high-speed D-type flip-flop with clear function, utilizing advanced silicon-gate CMOS technology to achieve high noise immunity and low power consumption. It can drive 10 LS-TTL loads.
The MM74HC175 is a high‑speed D‑type flip‑flop with complementary outputs, featuring a common clock and clear input. It is built with silicon‑gate CMOS technology, offering low power consumption and the ability to drive 10 LS‑TTL loads.
The document provides detailed electrical specifications, absolute maximum ratings, package dimensions for SOIC, SOP, TSSOP and PDIP variants, as well as ordering codes and a life‑support policy disclaimer.
| Typical propagation delay | 15 ns |
|---|---|
| Operating supply voltage range | 2‑6 V |
| Low input current | 1 µA max |
| Low quiescent supply current | 80 pA max |
| High output drive current | 4 mA min |
| Operating temperature range | -40 °C to +85 °C |
The typical propagation delay is 15 ns.
It operates from 2 V to 6 V.
The input current is up to 1 µA maximum.
The device can operate from –40 °C up to +85 °C.
