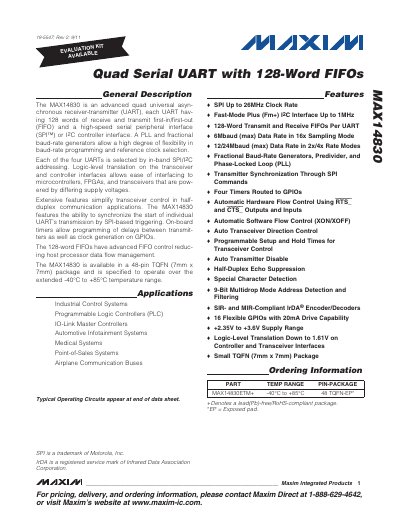

The MAX14830 is an advanced quad universal asynchronous receiver-transmitter (UART), each UART having 128 words of receive and transmit first-in/first-out (FIFO) and a high-speed serial peripheral interface (SPIK) or I2C controller interface.
The MAX14830 quad serial UART provides four independent UART channels, each with 128‑word transmit and receive FIFOs. It supports high‑speed SPI or I²C controller interfaces, fractional baud‑rate generators, and on‑board timers for flexible timing and GPIO clock generation.
The device is offered in a 48‑pin TQFN package, operates from –40 °C to +85 °C, and includes features such as automatic hardware flow control, transmitter synchronization, and logic‑level translation for easy integration with microcontrollers and FPGAs.
| Package | 48‑pin TQFN (7 mm × 7 mm) |
|---|---|
| Number of UART channels | 4 |
| FIFO depth per UART | 128 words |
| Operating temperature range | -40 °C to +85 °C |
| Supply voltage range (VA) | 2.35 V to 3.6 V |
| Maximum data rate (single UART) | 6 Mbaud (16× sampling) |
The MAX14830 provides four independent UART channels.
Each UART has a 128‑word transmit and receive FIFO.
It is offered in a 48‑pin TQFN (7 mm × 7 mm) package.
The device operates from –40 °C to +85 °C.
