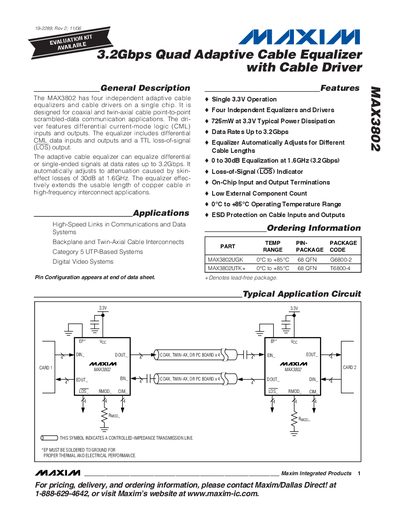

The MAX3802 is a single-chip quad adaptive cable equalizer and cable driver designed for coaxial and twin-axial cable point-to-point scrambled data communications applications.
The MAX3802 integrates four independent adaptive cable equalizers and four cable drivers on a single 68‑pin QFN chip. It supports both differential and single‑ended CML inputs and provides a loss‑of‑signal (LOS) TTL output. The device automatically adjusts to up to 30 dB of cable loss at 1.6 GHz, extending usable copper‑cable length for high‑speed interconnects.
Typical applications include high‑speed communication links, backplane and twin‑axial interconnects, Category‑5 UTP systems, and digital video systems. The datasheet details absolute maximum ratings, DC/AC electrical characteristics, pin descriptions, and package dimensions.
| Data Rate | Up to 3.2 Gbps |
|---|---|
| Supply Voltage | 3.3 V |
| Typical Power Dissipation | 725 mW at 3.3 V |
| Operating Temperature Range | 0 °C to +85 °C |
| Package | 68‑Pin QFN |
| Differential Input Voltage | 400 mV‑p‑p to 1100 mV‑p‑p |
| Loss‑of‑Signal Indicator | TTL active‑low output |
| Number of Independent Equalizers | Four |
The MAX3802 supports data rates up to 3.2 Gbps.
It contains four independent adaptive cable equalizers.
The device operates from 0 °C to +85 °C.
Typical power dissipation is 725 mW at 3.3 V.
