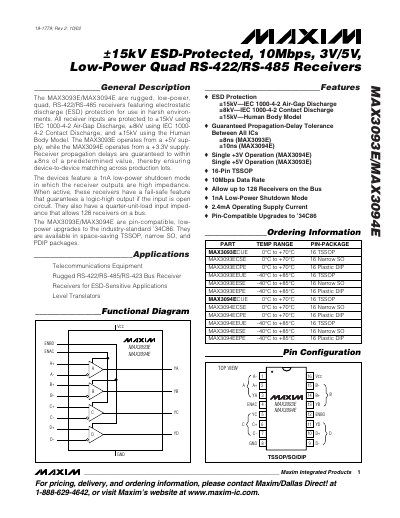

MAX3093E/MAX3094E is a rugged, low-power, quad, RS-422/RS-485 receiver featuring electrostatic discharge (ESD) protection for use in harsh environments
The MAX3093E and MAX3094E are rugged, low‑power, quad RS‑422/RS‑485 receivers designed for harsh environments. They feature extensive ESD protection (±15 kV Human Body Model, ±8 kV Contact Discharge, ±15 kV Air‑Gap) and a fail‑safe output that defaults to a logic high when inputs are open.
Both devices are available in space‑saving 16‑pin TSSOP, narrow SO, and PDIP packages. The MAX3093E operates from a +5 V supply, while the MAX3094E runs from a +3.3 V supply. They support up to 128 receivers on a single bus and provide matched propagation‑delay tolerances of ±8 ns (MAX3093E) or ±10 ns (MAX3094E). This manual is written in Chinese.
| Supply Voltage (VCC) | +5 V (MAX3093E), +3.3 V (MAX3094E) |
|---|---|
| Data Rate | 10 Mbps |
| Propagation‑Delay Tolerance | ±8 ns (MAX3093E), ±10 ns (MAX3094E) |
| Shutdown Current | ≤1 nA |
| Operating Supply Current | 2.4 mA |
| Maximum Receivers on Bus | 128 |
| Package Types | 16‑pin TSSOP, narrow SO, PDIP |
The MAX3093E operates from a +5 V supply.
Up to 128 receivers can be connected on the bus.
They provide ±15 kV protection for the Human Body Model, ±8 kV for Contact Discharge, and ±15 kV for Air‑Gap discharge.
