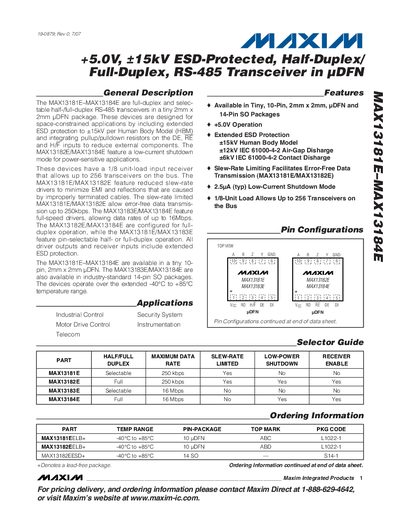

Maxim Integrated MAX13181E‑MAX13184E RS‑485 Transceiver Datasheet

About this manual

The MAX13181E‑MAX13184E family are +5 V, +15 kV ESD‑protected RS‑485 transceivers offered in tiny 10‑pin UDFN and 14‑pin SO packages. They support selectable half‑ or full‑duplex operation and include integrated pull‑up/pull‑down resistors, low‑current shutdown mode, and extended ESD protection.

These devices operate over a temperature range of –40 °C to +85 °C and provide data rates up to 250 kbps for the MAX13181E/MAX13182E variants and up to 16 Mbps for the MAX13183E/MAX13184E variants. Detailed electrical characteristics, driver and receiver switching parameters, and package dimensions are provided.

What's inside

• General Description
• Absolute Maximum Ratings
• DC Electrical Characteristics
• Driver Switching Characteristics
• Receiver Switching Characteristics
• Package Information
• Ordering Information
• Applications

Specifications

Frequently asked questions

What is the maximum data rate for the MAX13181E?

The MAX13181E supports a maximum data rate of 250 kbps.

What ESD protection rating do these transceivers have?

They provide +15 kV ESD protection per Human Body Model (HBM).
