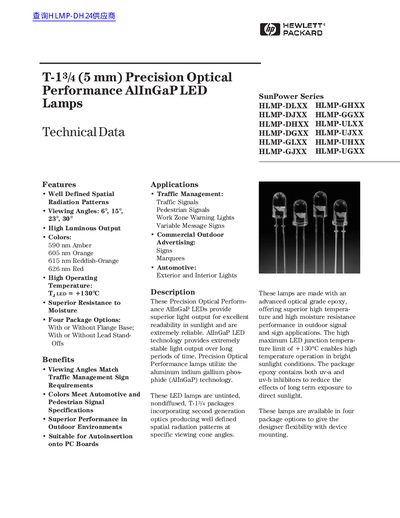

T-13/4 (5 mm) Precision Optical Performance AlInGaP LED Lamps have well defined spatial radiation patterns, provide high light output and high operating temperature.
The handbook provides technical data for the HP HLMP series of precision optical performance AlInGaP LEDs. It lists features such as well‑defined spatial radiation patterns, multiple viewing angles (6°, 15°, 23°, 30°), high luminous output, and operation up to +130 °C.
The document includes a device selection guide with part numbers, luminous intensity, dominant wavelength, and package options, as well as package dimensions, absolute maximum ratings, and electrical/optical characteristics such as forward voltage, peak wavelength, and luminous efficacy.
| Viewing Angles | 6°, 15°, 23°, 30° |
|---|---|
| Maximum Operating Temperature | +130 °C |
| Luminous Efficacy (Amber) | 480 lm/W |
| Forward Voltage (Amber) | 2.02 V |
| Maximum DC Forward Current | 1.2 A |
The HLMP series offers four standard viewing angles: 6°, 15°, 23°, and 30°.
The lamps can operate up to a maximum junction temperature of +130 °C.
The amber HLMP LEDs deliver a luminous efficacy of about 480 lm/W.
