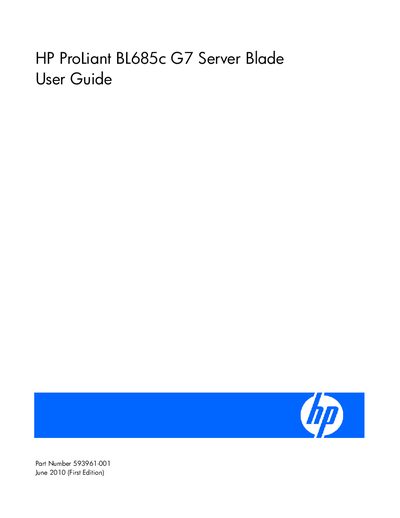

HP ProLiant BL685c G7 Server Blade User Guide

About this manual

This User Guide is intended for personnel who install, administer, and troubleshoot HP ProLiant BL685c G7 server blades. It assumes the reader is qualified to service computer equipment and is familiar with safety procedures for hazardous energy.

The manual covers component identification, hardware installation, cabling, management utilities, LED status indicators, and detailed troubleshooting flowcharts. It also includes regulatory compliance information, safety notices, and support resources.

What's inside

• Component identification
• Operations
• Hardware options installation
• Cabling
• Software and configuration utilities
• Troubleshooting
• Specifications
• Regulatory compliance notices
• Safety information
• Technical support

Specifications

Frequently asked questions

How do you power on the HP ProLiant BL685c G7 server blade?

Press the Power On/Standby button on the front panel; the system power LED will turn green.

What do the UID LED colors indicate?

Blue means the blade is identified, flashing blue indicates active remote management, and off means no active remote management.

What does a flashing amber health LED mean?

A flashing amber health LED indicates a degraded condition of the server blade.

Where can I find the regulatory compliance identification numbers?

They are listed in the Regulatory compliance notices section of the guide.
