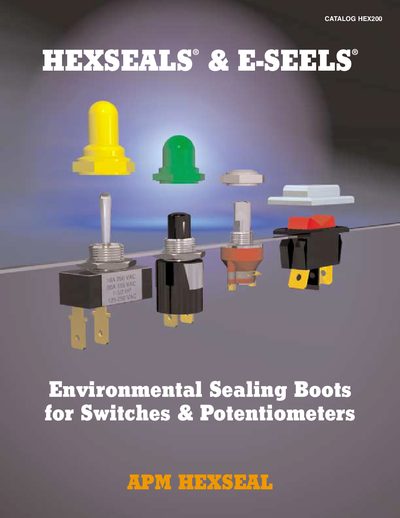

APM HEXSEALS ® and E-SEELS ® environmental sealing boots provide cost-effective, long-term protection for switches and potentiometers, which can resist water, oil, dust, dirt, salt spray, fungus and other environmental contaminants.
APM HEXSEAL provides a range of sealing boots designed to protect switches and potentiometers from water, oil, dust, salt spray, fungus and other harsh contaminants. The catalog explains how the high‑tear‑strength silicone rubber, integral sealing rib, and optional EMI/RFI shield keep panel‑mounted components reliable in demanding environments.
Three performance families are offered—Military‑Qualified, Industrial‑Grade, and Commercial‑Consumer—each with defined temperature ranges, material options, and certification levels. Detailed specifications, ordering information, and step‑by‑step installation instructions are included for both threaded and non‑threaded designs.
| Material | Silicone rubber (HEXSEALS conforms to ZZ‑R‑765 Class III, E‑SEELS ASTM D 1418) |
|---|---|
| Mounting Nut Material | Brass, nickel‑plated (HEXSEALS) / Brass, black oxide (E‑SEELS) |
| Temperature Range | -94°F to +400°F (HEXSEALS), -80°F to +400°F (E‑SEELS) |
| Pressure Range | Exceeds 15 psi internal and 1500 psi external |
| Operational Life | Minimum 50,000 actuations |
| Shelf Life | In excess of 25 years |
| Certifications | UL‑listed, CSA‑certified, MIL‑qualified (QPL under MIL‑B‑5423) |
HEXSEAL boots work from –94 °F to +400 °F, while E‑SEEL boots operate from –80 °F to +400 °F.
For most toggle, pushbutton and rotary shaft seals, expose 3 to 4 threads; for the N5000 series, expose 2 to 3 threads.
Yes, the boots are UL‑listed and also CSA‑certified.
The boots are molded from high‑tear‑strength silicone rubber that meets ZZ‑R‑765 specifications.
