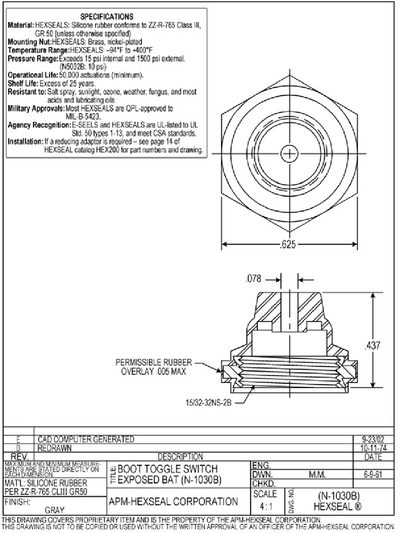

The APM-HEXSEAL N-1030B is a silicone‑rubber seal designed for harsh environments. It meets multiple industry standards and offers a wide temperature and pressure range.
Key features include a long operational life, resistance to chemicals and weather, and military‑grade approvals. Installation requires a reducing adaptor as referenced in the HEXSEAL catalog.
| Material | Silicone rubber conforms to 22‑R‑765 Class III, GR 40 |
|---|---|
| Mounting Nut | Brass, nickel‑plated |
| Temperature Range | -94°F to +400°F |
| Pressure Range | Exceeds 14 psi internal and 1400 psi external |
| Operational Life | Minimum 50,000 actuations |
| Shelf Life | Exceeds 25 years |
| Resistance | Salt spray, sunlight, ozone, weather, fungus, most acids and lubricating oils |
| Military Approvals | QPL‑approved to MIL‑B‑5423 |
| Agency Recognition | UL‑listed to UL Std. 50 types 1‑13, meets CSA standards |
It operates from –94 °F up to +400 °F.
It exceeds 14 psi internal pressure and 1400 psi external pressure.
It is rated for a minimum of 50,000 actuations.
Yes, most HEXSEALS are QPL‑approved to MIL‑B‑5423.
