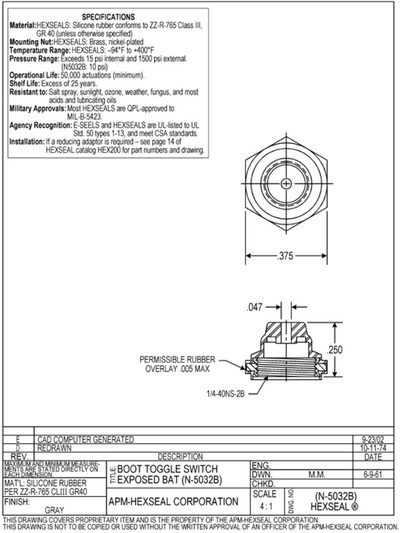

The APM-HEXSEAL N-5032B hexseal is made from silicone rubber that conforms to 2Z‑R‑765 Class III, GR 40 standards. It features a brass, nickel‑plated mounting nut and can operate from –94 °F to +400 °F, with a service life exceeding 25 years.
The seal is resistant to salt spray, sunlight, weather, fungus and most chemicals. It is UL‑listed to UL Std. 50 types 1‑13 and meets CSA standards. Installation may require a reducing adaptor as referenced in the HEXSEAL catalog.
| Material | Silicone rubber, 2Z‑R‑765 Class III, GR 40 |
|---|---|
| Mounting Nut | Brass, nickel‑plated |
| Temperature Range | -94 °F to +400 °F |
| Service Life | Exceeds 25 years |
| Resistance | Salt spray, sunlight, weather, fungus and most chemicals |
| Certifications | UL‑listed to UL Std. 50 types 1‑13, meets CSA standards |
| Permissible Rubber Overlay | Maximum .005 inches |
It is made of silicone rubber that conforms to 2Z‑R‑765 Class III, GR 40 standards.
It can operate from –94 °F up to +400 °F.
It is UL‑listed to UL Std. 50 types 1‑13 and meets CSA standards.
The maximum permissible rubber overlay is .005 inches.
