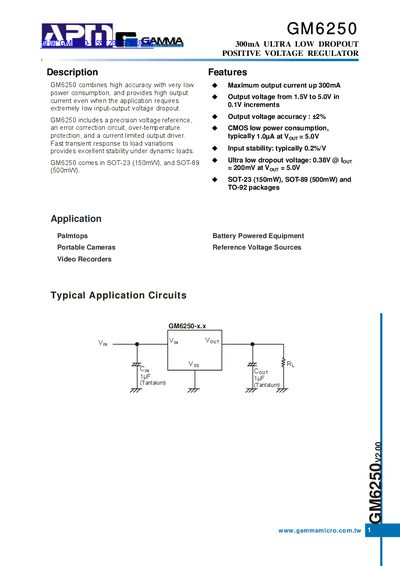

GM6250 is a 300mA ultra low dropout positive voltage regulator with high accuracy, low power consumption, and high output current. It includes a precision voltage reference, error correction circuit, over-temperature protection, and current limited output driver.
The GM6250 is a 300 mA ultra‑low dropout positive voltage regulator designed for battery‑powered equipment and reference voltage sources. It offers output voltages from 1.5 V to 5.0 V in 0.1 V steps, with ±2 % accuracy and a typical dropout of 0.38 V at 200 mA.
The device is available in SOT‑23 (150 mW), SOT‑89 (500 mW) and TO‑92 packages, with detailed ordering numbers for each voltage and package option. Electrical characteristics, absolute maximum ratings, and RoHS compliance details are provided.
| Maximum output current | 300 mA |
|---|---|
| Output voltage range | 1.5 V to 5.0 V (0.1 V steps) |
| Voltage accuracy | ±2 % |
| Quiescent current | 1.0 µA at Vout=5.0 V |
| Dropout voltage | 0.38 V at Iout=200 mA |
| Input voltage rating | 12 V |
| Package options | SOT‑23 (150 mW), SOT‑89 (500 mW), TO‑92 |
The GM6250 can deliver up to 300 mA of output current.
It is offered in SOT‑23 (150 mW), SOT‑89 (500 mW) and TO‑92 packages.
The dropout voltage is 0.38 V when the output current is 200 mA.
