Performance figures are shown as an indication of a heatsink's actual performance. It is recommended that the effectiveness of any heatsink is tested in the specific operating environment in which it will be subjected.

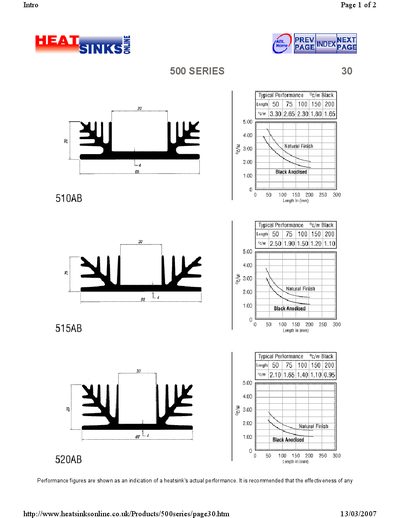

The 500 SERIES heatsinks are presented with typical performance figures for various sizes and finishes. Natural finish and black anodised options are listed with corresponding thermal resistance values.
Performance data is provided as an indication of actual heatsink effectiveness, with a recommendation to test each heatsink in its intended operating environment.
| Typical Performance (c/w Black) | 2.50 | 1.90 | 1.50 | 1.20 | 1.10 |
|---|
The heatsink should be tested in the specific operating environment in which it will be used.
