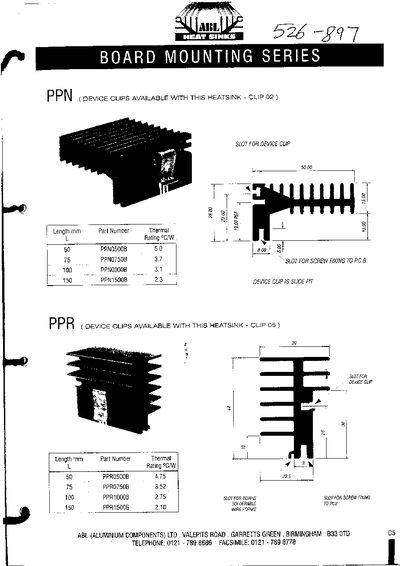

This one‑page datasheet lists the part numbers, dimensions and thermal resistance (°C/W) for ABL's board‑mounting aluminium heatsinks. The series includes 50 mm, 75 mm and 100 mm variants with different thermal performance.
Mounting options are shown with slots for device cups, screw fixing to the PCB and slide‑fit device clips, allowing flexible installation on printed‑circuit boards.
| PPNO500B Thermal Resistance | 5.0 °C/W |
|---|---|
| PPNO750B Thermal Resistance | 37 °C/W |
| PPNO1000B Thermal Resistance | 4.75 °C/W |
| PPRO?50B Thermal Resistance | 3.52 °C/W |
| PPR1000B Thermal Resistance | 2.75 °C/W |
| PPR1500B Thermal Resistance | 2.10 °C/W |
It is 5.0 °C/W.
The part number is PPNO750B.
