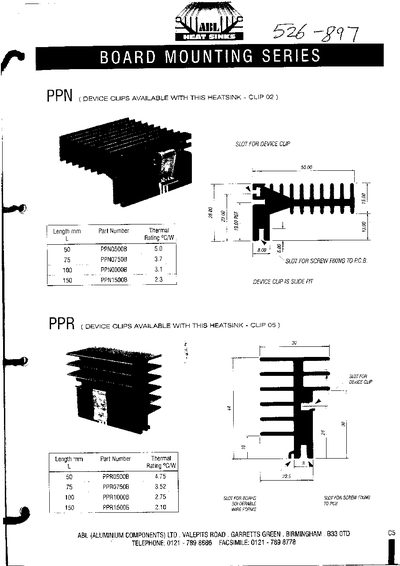

The ABL Heatsinks Board Mounting Series includes a range of aluminium heatsinks designed for PCB mounting. Each model is identified by a part number and offers a specific thermal resistance rating.
Mounting options include slots for device cups, screw fixing to the PCB, and device clips that slide into place. Contact information for ABL is provided at the end of the document.
| PPNO500B Length | 50 mm |
|---|---|
| PPNO500B Thermal Rating | 5.0 °C/W |
| PPNO750B Length | 75 mm |
| PPNO750B Thermal Rating | 3.7 °C/W |
| PPRO500B Length | 50 mm |
| PPRO500B Thermal Rating | 4.75 °C/W |
| PPR1000B Length | 100 mm |
| PPR1000B Thermal Rating | 2.75 °C/W |
The PPNO500B heatsink has a thermal rating of 5.0 °C/W.
The PPR1500B heatsink is 150 mm long.
It can be fixed to the PCB using the slot for screw fixing.
