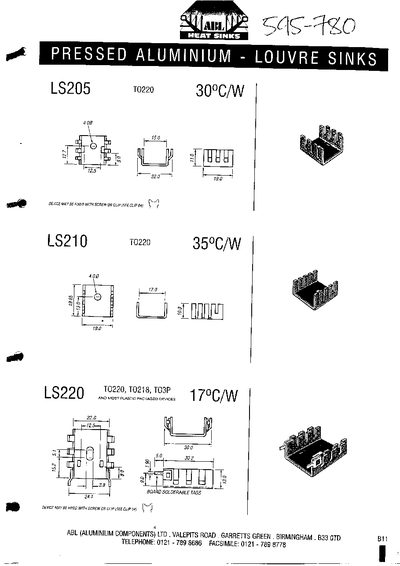

The ABL pressed aluminium Louvre heat sinks are designed for efficient thermal management in electronic assemblies. Models LS205, LS210 and LS220 provide different thermal resistances to suit various power dissipation needs.
Each heat sink can be mounted to a board using either screws or a dedicated clip, as shown in the document. The sheet also includes contact details for ABL (Aluminium Components) Ltd for ordering and technical support.
| LS205 Thermal Resistance | 30°C/W |
|---|---|
| LS210 Thermal Resistance | 39°C/W |
The LS205 heat sink has a thermal resistance of 30°C/W.
The heat sinks may be fixed with a screw or a clip.
