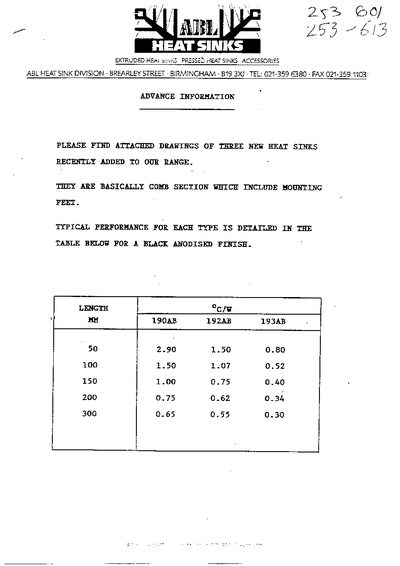

This document provides advance information on three newly added ABL heat sink models. It includes drawings of the comb‑section heat sinks, mounting details and a performance table for a black anodised finish.
The performance table lists typical thermal resistance values for various lengths (50 mm to 300 mm) for each model. Contact details for ABL Heat Sink Division are also included.
| Thermal resistance at 50 mm length – 190AB | 2.90 |
|---|---|
| Thermal resistance at 50 mm length – 152AB | 1.50 |
| Thermal resistance at 50 mm length – 193AB | 0.80 |
| Thermal resistance at 100 mm length – 190AB | 1.50 |
| Thermal resistance at 100 mm length – 152AB | 1.07 |
| Thermal resistance at 100 mm length – 193AB | 0.52 |
The document lists the models 190AB, 152AB and 193AB.
For a 150 mm length, the thermal resistance values are 1.00 for 190AB, 0.75 for 152AB and 0.40 for 193AB.
ABL Heat Sink Division is located at Brearley Street, Birmingham B19 3XJ, UK.
