Maxim DG411F/DG412F/DG413F Quad Rail-to-Rail Fault-Protected SPST Analog Switches Datasheet

The DG411F/DG412F/DG413F are quad, single-pole/sin- gle-throw (SPST), fault-protected analog switches. They are pin compatible with the industry-standard nonpro- tected DG411/DG412/DG413. These new switches fea- ture fault-protected inputs and Rail-to-Rail signal- handling capability. All terminals are protected from overvoltage faults up to ±36V with power on and up to ±40V with power off. During a fault condition, the COM, NO, or NC terminal becomes an open circuit and only microamperes of leakage current flow from the source. On-resistance is 35Ω (max) and is matched between switches to 1.5Ω (max) at +25°C. The DG411F has four normally closed (NC) switches. The DG412F has four normally open (NO) switches. The DG413F has two NC and two NO switches. These CMOS switches operate with dual power supplies rang- ing from ±4.5V to ±20V or a single supply between +9V and +36V. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring both TTL and CMOS logic com- patibility when using ±15V or a single +12V supply. For supply voltages of ±5V, +5V, and +3V, refer to the MAX4711/MAX4712/MAX4713 data sheet.

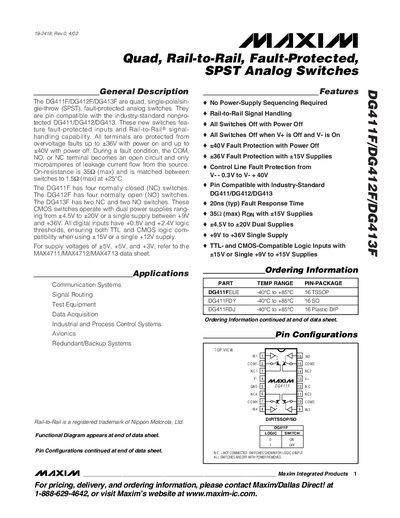

Maxim DG411F/DG412F/DG413F Quad Rail-to-Rail Fault-Protected SPST Analog Switches Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
16
File format
PDF
File size
435 KB
Published
07 May, 2012
Updated
28 September, 2023
MD5 checksum
5C600DD69A197D0BD019FC4695CFB9A0

About this manual

The DG411F, DG412F, and DG413F are quad, single‑pole/single‑throw analog switches that feature fault‑protected inputs and rail‑to‑rail signal handling. They are pin‑compatible with the standard DG411/DG412/DG413 devices and can replace them without redesign.

These switches operate from dual supplies of ±4.5 V to ±20 V or a single supply of +9 V to +36 V, provide TTL‑ and CMOS‑compatible logic thresholds, and include built‑in over‑voltage protection up to ±36 V (power on) or ±40 V (power off). Typical applications include communication systems, signal routing, test equipment, and industrial control.

What's inside

  • General Description
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Typical Operating Characteristics
  • Detailed Description
  • Pin Description
  • Ordering Information
  • Test Circuits/Timing Diagrams
  • Package

Specifications

On‑Resistance (RON) max35 Ω
Fault‑Protection Voltage (powered)±36 V
Fault‑Protection Voltage (power off)±40 V
Dual‑Supply Voltage Range±4.5 V to ±20 V
Single‑Supply Voltage Range+9 V to +36 V
Input Logic Low Threshold0.8 V
Input Logic High Threshold2.4 V
Operating Temperature Range-40 °C to +85 °C

Frequently asked questions

What is the maximum fault voltage when the device is powered?

The switches are protected from over‑voltage up to ±36 V while power is applied.

What is the on‑resistance of the DG411F/DG412F/DG413F switches?

The on‑resistance is specified as 35 Ω maximum.

What are the input logic level thresholds?

Logic low is 0.8 V and logic high is 2.4 V.
