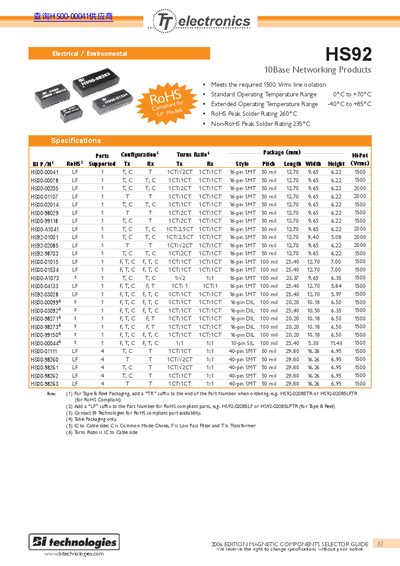

TT Electronics HS92 Product Leaflet
The HS92 is a magnetic component from TT Electronics. This leaflet lists its key electrical and environmental specifications, including line isolation, temperature ranges, and solder ratings.
It also details the available package styles, part‑number suffixes for RoHS compliance and tape‑and‑reel packaging, and provides a list of part numbers and their supported configurations.
TT Electronics HS92 specifications
| Line isolation | 1500 Vrms |
|---|---|
| Standard operating temperature range | 0°C to +70°C |
| Extended operating temperature range | -40°C to +85°C |
| RoHS peak solder rating | 260°C |
| Non‑RoHS peak solder rating | 235°C |
| Typical package dimensions (16‑pin SMT) | Length 12.70 mm, Width 9.65 mm, Height 6.22 mm, Voltage 1500 Vrms |
All TT Electronics HS92 documents by type
Questions answered in these manuals
What is the line isolation rating of the HS92?
The HS92 provides a line isolation rating of 1500 Vrms.
What temperature ranges does the HS92 support?
It operates from 0 °C to +70 °C under standard conditions and from –40 °C to +85 °C in extended mode.
What does the “LF” suffix indicate in part numbers?
The “LF” suffix denotes RoHS‑compliant parts.
From: TT Electronics HS92 10Base Networking Products Selector Guide
How are Tape & Reel packages identified?
Add a “TR” suffix to the end of the part number for Tape & Reel packaging.
From: TT Electronics HS92 10Base Networking Products Selector Guide
