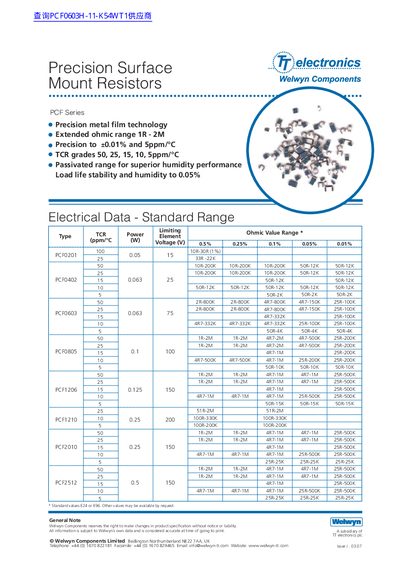

TT Electronics PCF Series Precision Surface Mount Resistors Datasheet

This document introduces the features and characteristics of the XX model product, including the product's purpose, performance, functions, etc.

Brand: TT Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 1.2 MB
Published: 04 July, 2012
Updated: 01 October, 2023
MD5 checksum: A8D4E66E6BA978454A1B2357C7491552
PDF: TT Electronics PCF Series Precision Surface Mount Resistors Datasheet PDF

About this manual

This document provides technical data for the TT Electronics PCF Series of precision metal film surface mount resistors. The product line features extended ohmic ranges from 1R to 2M with tolerances as tight as ±0.01% and temperature coefficients down to 5ppm/°C.

What's inside

Electrical Data
Physical Data
Construction
Terminations
Performance Data
Packaging
Application Notes

Specifications

Technology	Precision metal film technology
Ohmic Range	1R - 2M
Tolerance	+0.01% and 5ppm/°C
TCR Grades	50, 25, 15, 10, 5ppm/°C
Substrate Material	96% alumina substrate
Termination Plating	Nickel then Tin

Frequently asked questions

What is the maximum operating temperature for standard PCF resistors?

PCF resistors can operate at a maximum temperature of 125°C.

What is the maximum operating temperature for High Power PCF grades?

High Power grades can operate at a maximum temperature of 155°C.

How are PCF resistors packaged?

They are supplied taped and reeled as per IEC 286-3.
