This datasheet provides the specifications of OVLGY0CxB9, including package type, emitting color, emitting intensity, operating temperature range etc.

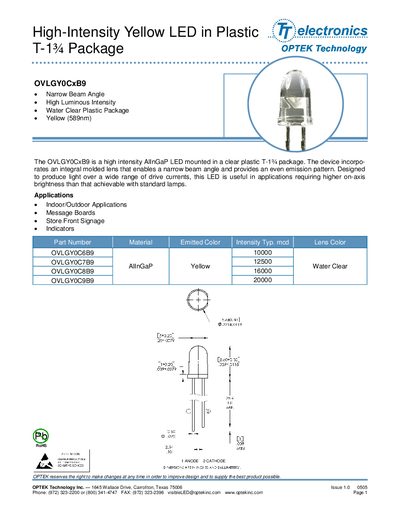

The document describes the OVLGY0CxB9, a high-intensity AllnGaP LED mounted in a clear plastic T-134 package with an integral molded lens. It is designed to produce light over a wide range of drive currents and features a narrow beam angle for applications requiring higher on-axis brightness.
| Emitted Color | Yellow (689nm) |
|---|---|
| Storage Temperature Range | -40 ~ +100 °C |
| Operating Temperature Range | -40 ~ +85 °C |
| Reverse Voltage | 5V |
| Continuous Forward Current | 50 mA |
| Peak Forward Current (10% Duty Cycle, 1KHz) | 100 mA |
| Power Dissipation | 120 mW |
The typical forward voltage ranges from 2.0V to 2.4V at a current of 20mA.
The maximum reverse current is less than 10 pA at a voltage of 5V.
The typical luminous intensity values range from 6,300 to 20,000 mcd depending on the specific part number.
