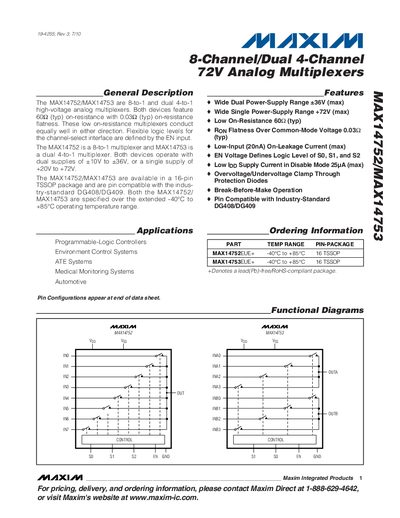

The MAX14752/MAX14753 are 8-Channel/Dual 4-Channel 72V Analog Multiplexers
The MAX14752 and MAX14753 are high‑voltage analog multiplexers offered in 8‑to‑1 and dual 4‑to‑1 configurations. They feature low on‑resistance, wide dual‑ and single‑supply voltage ranges, and operate over a –40 °C to +85 °C temperature range.
The devices are supplied in a 16‑pin TSSOP package, are pin‑compatible with the industry‑standard DG408/DG409, and include specifications such as on‑resistance flatness, low leakage currents, and break‑before‑make operation. Detailed electrical characteristics, test circuits, timing diagrams, and pin configurations are provided.
| On‑Resistance (typ) | 60 Ω |
|---|---|
| On‑Resistance Flatness (typ) | 0.03 Ω |
| Low‑Input On‑Leakage Current (max) | 20 nA |
| Dual Supply Voltage Range | +10 V to +36 V (Vpp), -10 V to -36 V (Vss) |
| Single Supply Voltage Range | +20 V to +72 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 16‑pin TSSOP |
The typical on‑resistance is 60 Ω.
They operate with Vpp from +10 V to +36 V and Vss from -10 V to -36 V.
Both devices are available in a 16‑pin TSSOP package.
They are specified for –40 °C to +85 °C.
