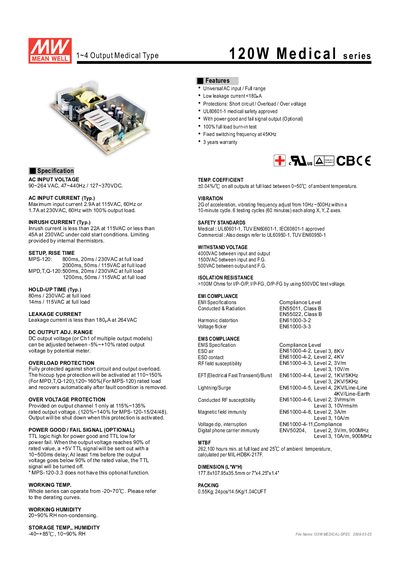

This document is about the specification of MPS-120 model, including input voltage, input current, inrush current, setup time, hold-up time, leakage current, DC output voltage adjustment range, overload protection, overvoltage protection, power good / fail signal etc.
The MW 120W Medical Series is a universal‑input AC‑DC power supply designed for medical equipment. It offers 1‑4 output channels, low leakage current (<180 pA), and multiple protection features such as short‑circuit, overload, and over‑voltage protection. The series complies with UL60601‑1, TUV EN60601‑1, and IEC60601‑1 medical safety standards and includes optional power‑good/fail signaling.
Key electrical specifications include an input voltage range of 90‑264 VAC (47‑440 Hz) or 127‑370 VDC, maximum input current of 2.9 A at 115 VAC, and inrush current under 22 A (115 VAC) or 45 A (230 VAC). The units operate from –20 °C to 70 °C, tolerate 20‑90 % RH, and feature >100 MΩ isolation resistance. Mechanical dimensions are 177.8 × 107.95 × 35.5 mm, with Molex connectors for AC input and DC output.
| AC Input Voltage | 90~264 VAC, 47~440 Hz / 127~370 VDC |
|---|---|
| Maximum Input Current | 2.9 A at 115 VAC, 1.7 A at 230 VAC |
| Inrush Current | < 22 A at 115 VAC, < 45 A at 230 VAC |
| Hold‑up Time (Typ.) | 80 ms @230 VAC, 14 ms @115 VAC |
| Leakage Current | < 180 pA at 264 VAC |
| Operating Temperature Range | -20 °C to 70 °C |
| Isolation Resistance | > 100 MΩ (500 VDC test) |
| Dimensions (L×W×H) | 177.8 × 107.95 × 35.5 mm |
It accepts 90 to 264 VAC (47 to 440 Hz) or 127 to 370 VDC.
The series is approved to UL60601‑1, TUV EN60601‑1, IEC60601‑1 for medical use and also follows UL60950‑1 and TUV EN60950‑1 for commercial applications.
Leakage current is less than 180 pA at 264 VAC.
The unit can operate from –20 °C up to 70 °C.
