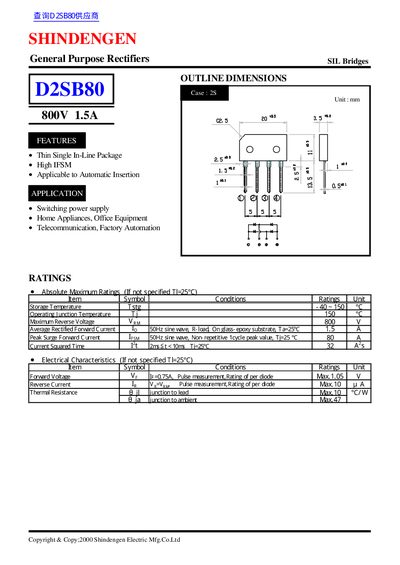

D2SB80 is a 800V/1.5A Schottky diode produced by Shindengen. Its package is 2S and it is used in switching power supplies, home appliances, office equipment, telecommunications, and factory automation.
The D2SB80 is a general‑purpose silicon rectifier offered in a thin single in‑line (SIL) package. It is intended for use in switching power supplies, home appliances, office equipment, telecommunications, and factory automation applications.
Key electrical ratings include a maximum reverse voltage of 800 V, an average rectified forward current of 1.5 A, a peak surge forward current of 80 A, a forward voltage of 1.05 V at 0.75 A, and thermal resistances of 10 °C/W (junction‑to‑lead) and 47 °C/W (junction‑to‑ambient). The device operates up to a junction temperature of 150 °C and can be stored from –40 °C to 150 °C.
| Maximum Reverse Voltage | 800 V |
|---|---|
| Thermal Resistance Junction‑to‑Ambient | 47 °C/W |
| Package Type | Thin Single In‑Line (SIL) |
The D2SB80 can block up to 800 V reverse voltage.
