D1FL40 400V 0.8A is a Schottky diode product produced by Shindengen. It features small package, low noise and trr50ns. It is suitable for switching power supply, DC/DC converter, free wheel, home appliances, office equipment, telecommunications, factory automation and other fields.

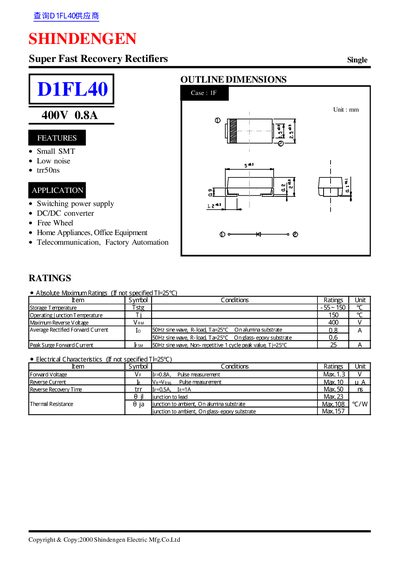

This document is a technical datasheet for the Shindengen D1FL40 Super Fast Recovery Rectifiers Single. The component features a small SMT package design with low noise characteristics and a reverse recovery time (trr) of 50ns.
The device is intended for applications in switching power supplies, DC/DC converters, and free-wheeling circuits within home appliances, office equipment, telecommunication systems, and factory automation. The datasheet provides absolute maximum ratings, electrical characteristics, and derating curves.
| Average Rectified Forward Current (IO) on alumina substrate | 0.8 A |
|---|---|
| Average Rectified Forward Current (IO) on glass-epoxy substrate | 0.6 A |
| Peak Surge Forward Current (IFSM) | 25 A |
| Reverse Recovery Time (trr) | Max. 50 ns |
| Forward Voltage (VF) | Max. 1.3 V |
The maximum reverse recovery time (trr) for the D1FL40 is 50 ns.
It is designed for switching power supplies, DC/DC converters, and free-wheeling circuits in home appliances and factory automation.
The maximum operating junction temperature (Tj) is 150 °C.
