This document describes the features and characteristics of the D1NL20U super fast recovery rectifier produced by Shindengen Electric Mfg.Co.Ltd, including low noise, reverse recovery time of 35ns, etc.

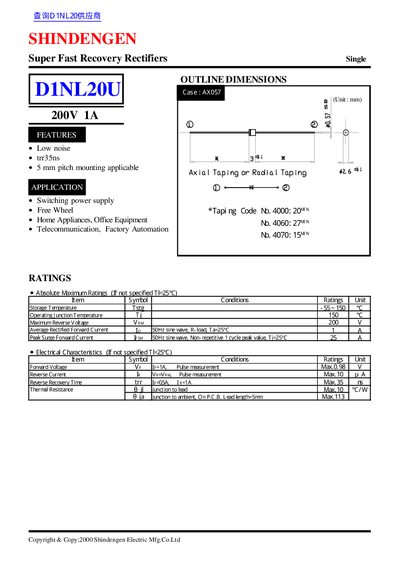

This document is a technical datasheet for the Shindengen D1NL20U, a Super Fast Recovery Rectifier. It outlines key features such as low noise and suitability for 5mm pitch mounting via SHP Axial or Radial Taping.
The text provides absolute maximum ratings including a storage temperature range of -55 to +150°C and an operating junction temperature up to 150°C. Electrical characteristics specify a forward voltage (VF) of Max. 0.98V at IF=1A, with a reverse recovery time (trr) of Max. 35µs. This manual is written in Japanese.
| Maximum Reverse Voltage (VRM) | 200 V |
|---|---|
| Peak Surge Forward Current (IFSM) | 25 A |
| Forward Voltage (VF) | Max. 0.98 V |
| Reverse Recovery Time (trr) | Max. 35 µs |
