S1ZB60 is a 600V 0.8A SMT bridge rectifier produced by Shindengen. The product has small SMT package, high reliability, superior moisture resistance and is suitable for automatic insertion.

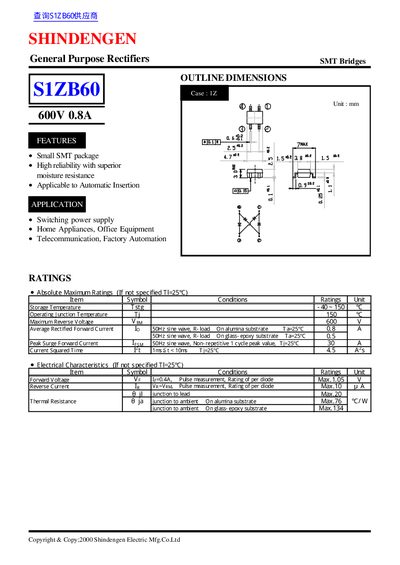

The document describes the Shindengen S1ZB60, a 600V 0.8A General Purpose Rectifier available in an SMT bridge package. Key features include high reliability with superior moisture resistance and applicability to automatic insertion processes.
The datasheet details absolute maximum ratings such as storage temperature (-40~150°C) and peak surge forward current (30 A). It also presents electrical characteristics including forward voltage, reverse current, and thermal resistance for both alumina and glass-epoxy substrates.
| Average Rectified Forward Current (Glass-Epoxy) | 0.5 A |
|---|
The rectifier is applicable to switching power supplies, home appliances, office equipment, telecommunication, and factory automation.
The maximum operating junction temperature (Tj) is 150°C.
