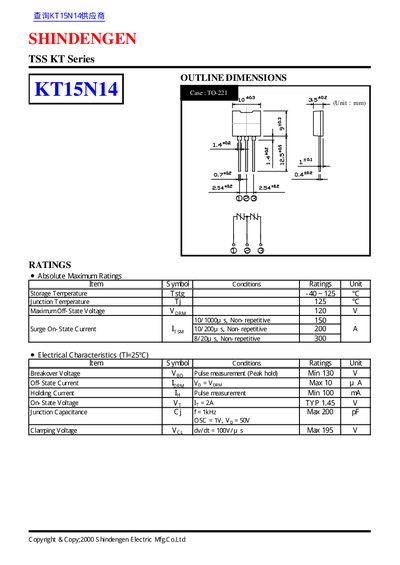

This document provides KT15N14 datasheet information, including the product's absolute maximum ratings, electrical characteristics, and curve charts.
The KT15N14 component is described with its physical outline dimensions and a full set of electrical ratings. Key parameters such as storage temperature, junction temperature, and off‑state voltage are listed.
The datasheet also details the device's electrical characteristics, including breakover voltage, on‑state voltage, junction capacitance, and clamping voltage, as well as surge and holding current specifications.
| Storage Temperature | -40 ~ 125 °C |
|---|---|
| Junction Temperature | 125 °C |
| Breakover Voltage (V0) | Min 130 V |
| On‑State Voltage (Vr) | Typ 1.45 V |
| Junction Capacitance (Cj) | Max 200 pF |
| Clamping Voltage (Vc) | Max 195 V |
The device can be stored from –40 °C to 125 °C.
The typical on‑state voltage is 1.45 V.
The junction capacitance is limited to 200 pF.
