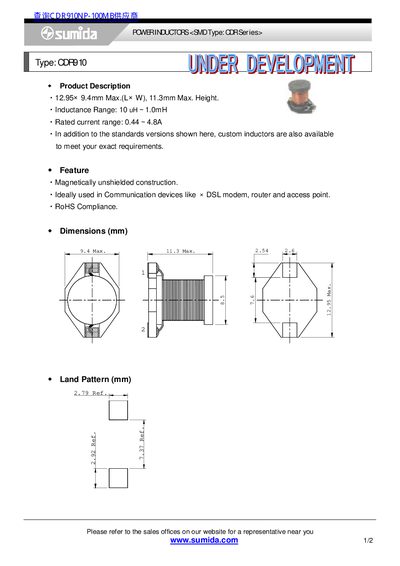

Sumida CDR910 SMD Power Inductor Datasheet

CDR910NP-100MB is a SMD inductor from Sumida with a rated current of 0.44-4.8A and an inductance range of 10uH-1mH.

Brand: Sumida
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 55 KB
Published: 06 June, 2012
Updated: 30 September, 2023
MD5 checksum: 90D17BF080E0784A8F9C42B789774044
PDF: Sumida CDR910 SMD Power Inductor Datasheet PDF

About this manual

The document describes the Sumida CDR910 series of Surface Mount Device (SMD) power inductors. These components feature a magnetically unshielded construction and are designed for use in communication devices such as DSL modems, routers, and access points. The product line includes standard versions with dimensions up to 12.95mm x 9.4mm and heights of 11.3mm maximum.

What's inside

Product Description
Feature
Dimensions
Specification
Description of part name

Specifications

Inductance Range	10 uH to 1.0mH
Rated Current Range	0.44 A to 4.8A
Dimensions (L x W)	12.95 x 9.4mm Max.
Maximum Height	11.3mm

Frequently asked questions

What are the typical applications for this inductor?

These inductors are ideally used in communication devices like DSL modems, routers, and access points.

Are custom versions available?

Yes, in addition to the standard versions shown, custom inductors are also available to meet specific requirements.
