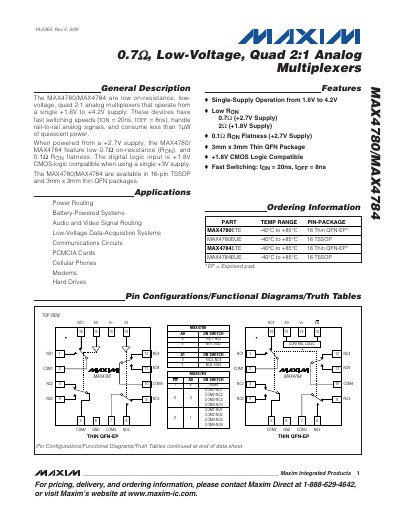

The MAX4780/MAX4784 are low on-resistance, low-voltage, quad 2:1 analog multiplexers that operate from a single +1.6V to +4.2V supply. These devices have fast switching speeds (tON = 20ns, tOFF = 8ns), handle rail-to-rail analog signals, and consume less than 1µW of quiescent power. When powered from a +2.7V supply, the MAX4780/MAX4784 feature low 0.7Ω on-resistance (RON), and 0.1Ω RON flatness. The digital logic input is +1.8V CMOS-logic compatible when using a single +3V supply. The MAX4780/MAX4784 are available in 16-pin TSSOP and 3mm x 3mm thin QFN packages.
The MAX4780 and MAX4784 are low‑on‑resistance, low‑voltage quad 2:1 analog multiplexers that operate from a single +1.6 V to +4.2 V supply. They feature fast switching (tON = 20 ns, tOFF = 8 ns), rail‑to‑rail analog signal handling, and a quiescent power consumption of less than 1 µW.
Available in 16‑pin TSSOP and 3 mm × 3 mm thin QFN packages, the devices accept +1.8 V CMOS logic inputs and are suited for power‑routing, battery‑powered systems, audio/video signal routing, low‑voltage data‑acquisition, and communications circuits.
| Supply voltage range | 1.6 V to 4.2 V |
|---|---|
| On‑resistance (RON) at 2.7 V | 0.7 Ω |
| RON flatness | 0.1 Ω |
| Turn‑on time (tON) | 20 ns |
| Turn‑off time (tOFF) | 8 ns |
| Input logic‑high voltage (VIH) | 1.8 V |
| Input logic‑low voltage (VIL) | 0.5 V |
| Quiescent power consumption | < 1 µW |
| Operating temperature range | -40 °C to +85 °C |
| Package types | 16‑pin TSSOP, 3 mm × 3 mm thin QFN |
It operates from a single +1.6 V to +4.2 V supply.
The on‑resistance is 0.7 Ω when powered at +2.7 V.
Turn‑on time is 20 ns and turn‑off time is 8 ns.
A high input requires a logic‑high voltage of 1.8 V.
