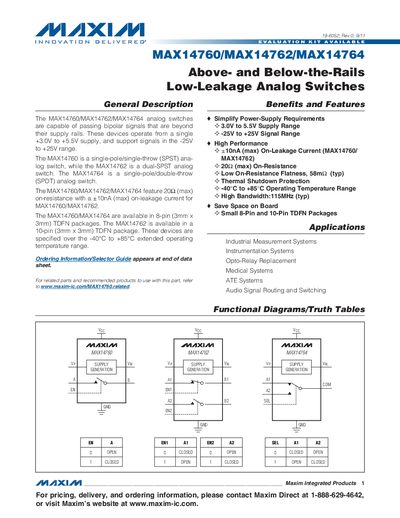

This data sheet introduces the characteristics of MAX14760/MAX14762/MAX14764 series low leakage current analog switches, including working voltage range, signal range, switch resistance, switch current, etc.
The MAX14760, MAX14762, and MAX14764 are low‑leakage analog switches that operate from a single supply rail ranging from +3.0 V to +5.5 V and can handle bipolar signals from –25 V to +25 V. They are offered in compact 8‑pin and 10‑pin TDFN packages and feature low on‑resistance, high bandwidth, and thermal shutdown protection.
These devices are suited for industrial measurement, instrumentation, medical, and audio signal routing applications. The datasheet includes absolute maximum ratings, detailed electrical characteristics, test circuit diagrams, typical operating curves, and ordering information.
| On‑Leakage Current | 10 nA (max) |
|---|---|
| Off‑Leakage Current | 30 nA (typ) |
| Bandwidth | 115 MHz (typ) |
| Operating Temperature Range | -40 °C to +85 °C |
The on‑leakage current is specified as up to 10 nA.
They are rated for operation from –40 °C to +85 °C.
