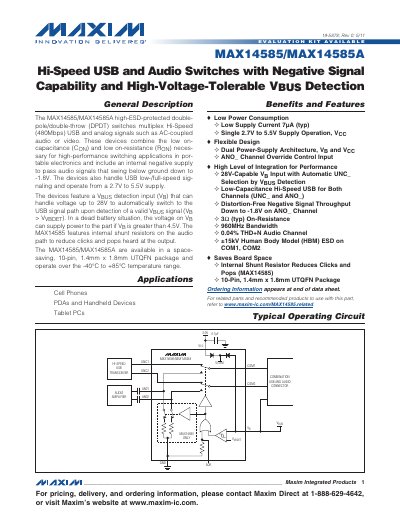

MAX14585/MAX14585A are high-performance USB and audio switches with negative signal capability and high-voltage VBUS detection from Maxim Integrated.
The MAX14585 and MAX14585A are high‑ESD‑protected double‑pole double‑throw switches that multiplex Hi‑Speed USB (480 Mbps) and AC‑coupled audio or video signals.
They operate from a 2.7 V to 5.5 V supply, feature a VBUS detection input tolerant up to 28 V, provide negative‑signal capability down to –1.8 V, and include internal shunt resistors to suppress audio clicks.
| Power Supply Range | 2.7 V – 5.5 V |
|---|---|
| Supply Current (typ) | 7 µA |
| Bandwidth | 960 MHz |
| THD+N | 0.04 % |
| Operating Temperature Range | -40 °C to +85 °C |
It operates from 2.7 V to 5.5 V supply voltage.
The device is rated for ±15 kV Human Body Model (HBM) on COM pins and 2 kV HBM on other pins.
