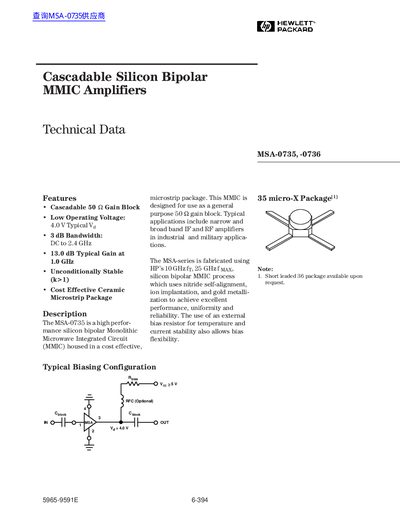

This document describes the technical data and features of the 6-394 Cascadable Silicon Bipolar MMIC Amplifiers, including 50Ω gain block, low operating voltage, 3dB bandwidth, 13dB gain, etc.
The MSA‑0735 and MSA‑0736 are silicon bipolar MMIC amplifiers offered as 50 Ω gain blocks. They are packaged in a cost‑effective 35 µm micro‑strip ceramic package and are designed for general‑purpose IF and RF amplification in industrial and military applications.
The datasheet provides absolute maximum ratings, electrical specifications, typical scattering parameters, and ordering information, including gain, bandwidth, noise figure, and power handling details.
| Typical Gain at 1.0 GHz | 13.0 dB |
|---|---|
| 3 dB Bandwidth | DC to 2.4 GHz |
| Low Operating Voltage | 4.0 V typical |
| Maximum Device Current | 60 mA |
| Power Dissipation | 275 mW |
| RF Input Power (max) | +13 dBm |
| Noise Figure at 1.0 GHz | 45 dB |
| Output Power at 1 dB Gain Compression | 5.5 dBm |
| Third‑Order Intercept Point (IP3) | 19.0 dBm |
The typical gain is 13.0 dB at 1.0 GHz.
The low operating voltage is typically 4.0 V.
The absolute maximum device current is 60 mA.
The device can tolerate up to +13 dBm of RF input power.
