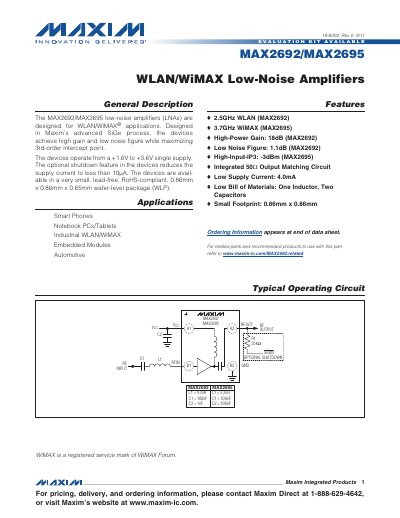

MAX2692/MAX2695 WLAN/WiMAX low-noise amplifiers are low-noise amplifiers designed for WLAN/WiMAX applications. Designed in Maxim's advanced SiGe process, the devices achieve high gain and low noise figure while maximizing 3rd-order intercept point. The devices operate from a +1.6V to +3.6V single supply. The optional shutdown feature in the devices reduces the supply current to less than 10FA. The devices are available in a very small, lead-free, RoHS-compliant, 0.86mm x 0.86mm x 0.65mm wafer-level package (WLP).
The MAX2692 and MAX2695 are SiGe‑based low‑noise amplifiers (LNAs) designed for WLAN (2.45 GHz) and WiMAX (3.5 GHz) applications. They operate from a single supply of 1.6 V to 3.6 V and feature an optional shutdown pin that reduces supply current to less than 10 µA.
The devices are offered in a 0.86 mm × 0.86 mm × 0.65 mm wafer‑level package (WLP) and integrate a 50 Ω output matching network. Typical performance includes up to 18.2 dB gain, 1.1 dB noise figure, and high linearity with an IIP3 of –3 dBm.
| Supply Voltage | 1.6 V – 3.6 V |
|---|---|
| Shutdown Supply Current | ≤ 10 µA |
| Output Return Loss (MAX2692) | 17 dB |
| Maximum RF Input Power | +5 dBm |
| Operating Temperature Range | -40 °C to +85 °C |
They operate from a single supply of 1.6 V to 3.6 V.
When the shutdown pin is asserted, the supply current drops to less than 10 µA.
Both devices are supplied in a 0.86 mm × 0.86 mm × 0.65 mm wafer‑level package (WLP) that is lead‑free and RoHS‑compliant.
