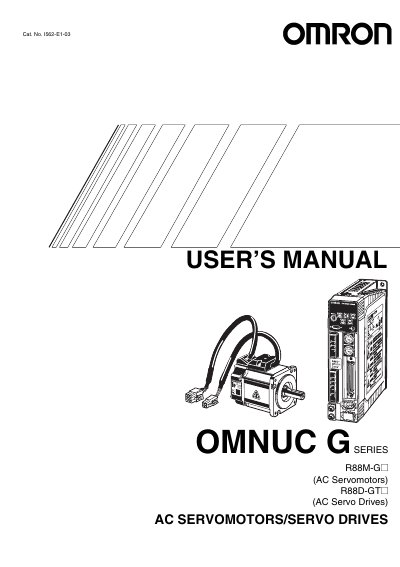

Omron OMNUC G Series R88M-G / R88D-GT User Manual

About this manual

This manual provides installation and wiring instructions, parameter setting procedures, and safety guidelines for the OMNUC G Series AC servomotors (R88M‑G) and servo drives (R88D‑GT). It is intended for qualified electrical engineers, system designers, and maintenance personnel.

The document also includes performance data, standard model specifications, troubleshooting steps, and revision history, ensuring safe and proper use of the products throughout their lifecycle. This manual is written in Chinese.

What's inside

• Introduction
• Safety Precautions
• Installation and Wiring
• Performance Data
• Standard Models and Dimensions
• Troubleshooting
• Index
• Revision History
• Terms and Conditions

Frequently asked questions

What grounding resistance is required for safe operation?

Connect the frame ground terminals of the Servo Drive and the Servomotor to 100 Ω or less.

What safety measure is needed for emergency stopping?

Provide an external emergency stopping mechanism that can stop operation and shut off the power supply immediately.
