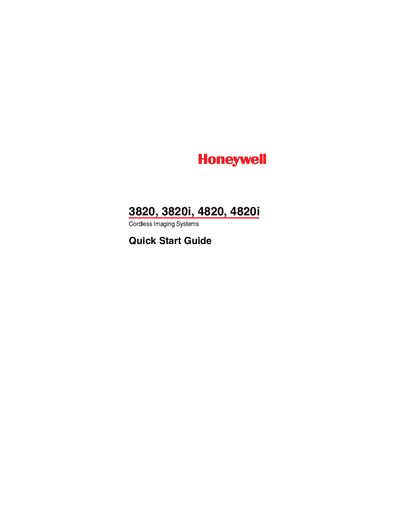

This document provides a quick start guide for the 3820, 3820i, 4820, and 4820i Cordless Imaging Systems, including instructions on connecting the base, using different connection methods, reading techniques, and default settings of the products.
The guide provides basic setup steps for Honeywell's cordless imaging systems. It explains how to connect the base to a computer, place the imager in the base, and verify the link using LED indicators and beeps.
Additional sections cover reading techniques, keyboard wedge configuration, country-specific keyboard settings, and procedures for overriding or unlinking a locked imager.
| Battery charging indicator | Green LED flashes |
|---|---|
| Link established beep | One beep |
| Link not established beep | Three beeps |
| Aiming beam size | Smaller when close, larger when far |
It flashes to show that the imager’s battery is charging.
Scan the Program Keyboard Country barcode, then scan the numeric barcodes from page 12, and finally scan the Save barcode.
Scan the Override Locked Imager barcode with a new imager and place that imager in the base; the old link will be removed.
