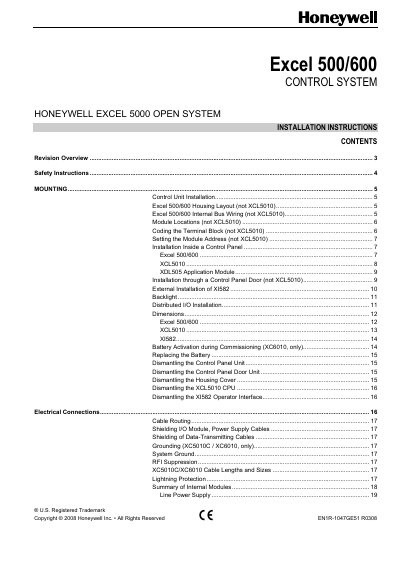

Honeywell Excel 500/600 Control System Installation Guide

This manual describes the installation instructions for the Excel 5000 open system.

Brand: Honeywell
Category: Automation control Equipment
Document type: Installation Guide
Language: English
Pages: 38
File format: PDF
File size: 2.4 MB
Published: 07 May, 2012
Updated: 30 September, 2023
Model: Excel 50
MD5 checksum: 5498B7997F1F4B1103999913A0EB3F75
PDF: Honeywell Excel 500/600 Control System Installation Guide PDF

About this manual

This document provides step‑by‑step instructions for installing the Honeywell Excel 500/600 control system. It covers safety precautions, mounting options (inside a control panel or through a panel door), wiring of internal bus cables, and the layout of housing modules.

Additional sections describe electrical connections, cable routing, grounding, RFI suppression, module address configuration, communication setup (LONWORKS, C‑Bus, modem/ISDN), and troubleshooting procedures for the controller and its peripherals.

What's inside

Safety Instructions
Mounting Options
Control Unit Installation
Internal Bus Wiring
Coding the Terminal Block
Setting the Module Address
Electrical Connections and Cable Routing
Communications (LONWORKS, C‑Bus, Modem/ISDN)
Remote Communications
Troubleshooting

Specifications

Analog Output Voltage Rating	0…10 V (max 11 V)
Analog Output Current Rating	max 1 mA
Digital Output Voltage Rating	max 240 Vac per contact
Digital Output Current Rating	max 4 A at 240 Vac
Minimum Housing Spacing	35 mm (1.5 in)

Frequently asked questions

What is the minimum spacing required between Excel 500/600 housings?

The housings must be spaced at least 35 mm (1.5 in) apart to allow the hinged cover to open.

How are module addresses set on the Excel 500/600?

Module addresses are set using the rotary HEX switches on the upper surface of each input or output module.
