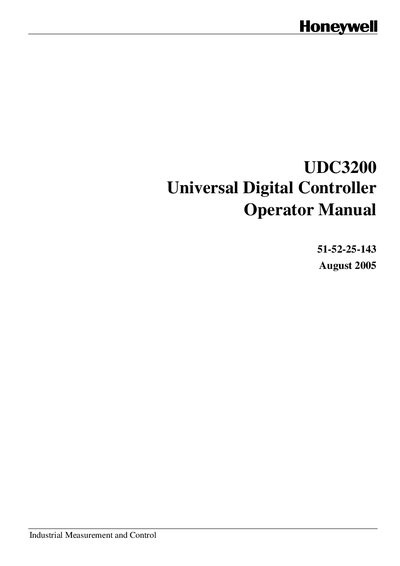

This manual provides operating instructions for the UDC3200 Universal Digital Controller
The Honeywell UDC3200 Universal Digital Controller is a panel‑mounted industrial control device with a four‑digit upper display for process variables and a lower display for setpoints, inputs, and alarms. The manual provides detailed instructions for operator interface, key functions, and configuration groups.
Key sections cover CE conformity, enclosure ratings (NEMA4X, IP66), wiring diagrams, monitoring, and service troubleshooting. Installation requirements, over‑voltage category, and EMC classifications are also documented to ensure compliance with safety and regulatory standards.
| Enclosure Rating | NEMA4X, IP66 |
|---|---|
| Installation Category | Category II (EN61010-1) |
| Pollution Degree | Degree 2 |
| EMC Classification | Group 1, Class A |
| Product Classification | Class I panel‑mounted industrial control equipment |
The front panel is rated at NEMA4X and IP66 when properly installed.
It complies with the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC.
The controller is classified as Installation Category II according to EN61010‑1.
