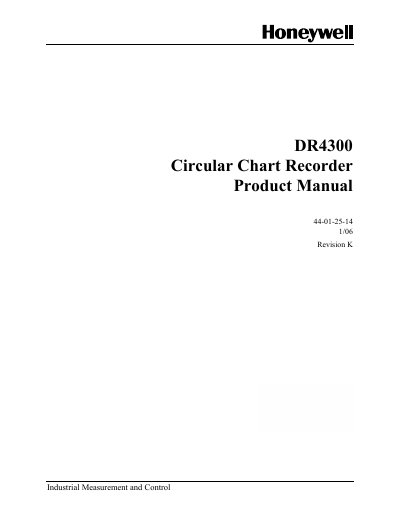

DR4300 Circular Chart Recorder Product Manual
This manual covers the DR4300 circular chart recorder, describing its installation options, wiring requirements, and mounting methods. It includes detailed configuration steps for both basic recorders without a display and those with a display and keypad.
The guide also provides procedures for input and output calibration, routine maintenance, parts identification, and extensive troubleshooting with self‑diagnostic tests. Safety symbols, warranty information, and service center contacts are included throughout.
| Ambient Temperature | 0 °C to 55 °C |
|---|---|
| Relative Humidity | 5 % to 90 % RH at 40 °C |
| Power Consumption | 20 W maximum |
The recorder operates from 0 °C to 55 °C (32 °F to 131 °F).
It consumes up to 20 W maximum.
