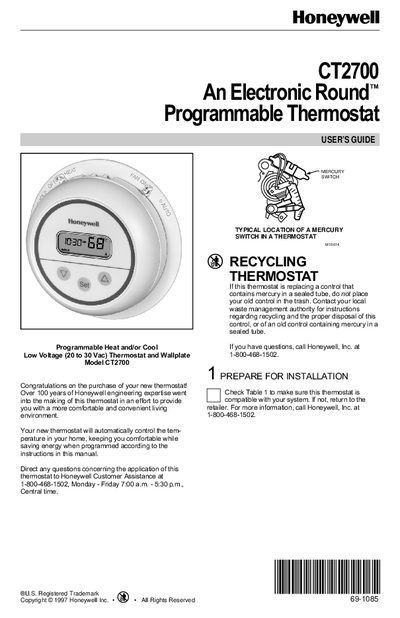

Honeywell CT2700 Electronic Round Programmable Thermostat User Guide

This document is the user manual for Honeywell's CT2700 smart thermostat

Brand: Honeywell
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 469 KB
Published: 07 May, 2012
Updated: 30 September, 2023
MD5 checksum: 440F86652FC272A5A028907F323CB43C
PDF: Honeywell CT2700 Electronic Round Programmable Thermostat User Guide PDF

About this manual

This guide walks you through preparing for installation, removing the old thermostat, and mounting the wallplate and thermostat. Detailed wiring diagrams, tool lists, and step‑by‑step instructions ensure a correct connection to your heating or cooling system.

After installation you can program the pre‑set WAKE and SLEEP schedules, adjust fan and system switches, customize cycle rates, and troubleshoot common issues. The manual also includes warranty information and safety cautions.

What's inside

Prepare for Installation
Compatibility Chart
Remove Old Thermostat
Mount Wallplate
Wire Wallplate Terminals
Adjust Fan Operation Switch
Program Your Thermostat
Operate Your Thermostat
Set Fan and System Switches
Check Operation After Installation

Specifications

Operating Voltage	20 to 30 Vac
Wire Compatibility	4‑wire, 18 to 30 Vac heating‑cooling systems
Maximum Wire Gauge	78‑gauge
Pre‑programmed WAKE Setpoint	70°F (21°C) at 6:00 AM
Pre‑programmed SLEEP Setpoint	62°F (16.5°C) at 10:00 PM
Fan Switch Positions	ON (continuous) / AUTO (normal)
Heating Cycle Rates	1, 3, 6, or 9 cycles per hour

Frequently asked questions

How can I exit the installer setup or any menu?

Press the 9 key repeatedly until the word End appears on the display.
