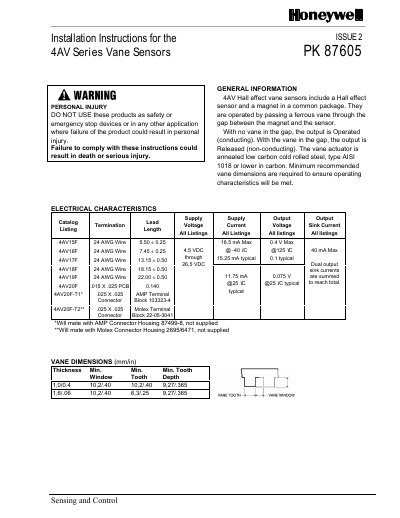

This document is the installation instructions for the 4AV series vane sensors. It introduces the product's features and characteristics, including electrical characteristics and installation dimensions.
The 4AV Series Hall‑effect vane sensors consist of a Hall sensor and a magnet in a single package. They operate by passing a ferrous vane through the gap between the magnet and sensor, switching the output between conducting and non‑conducting states.
The guide provides detailed installation instructions, including electrical characteristics, mechanical dimensions, recommended soldering practices, cleaning procedures, and safety cautions such as not using the sensors for safety or emergency‑stop applications.
| Supply Current | 11.75 mA @25 °C typical |
|---|---|
| Output Voltage | 0.075 V @25 °C typical |
| Output Sink Current | 40 mA Max |
No. The manual explicitly warns not to use the sensors as safety or emergency‑stop devices.
Clean the assembly with a 50‑50 mixture of isopropyl alcohol and clean tap water, then dry at 71 °C for 10‑15 minutes.
