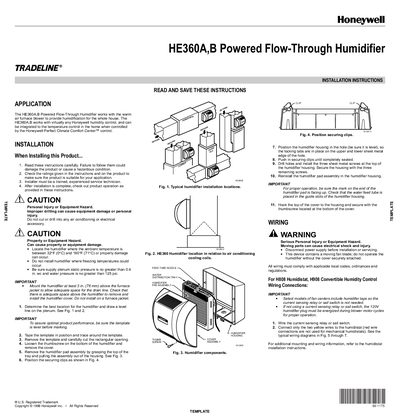

This document is the installation manual for Honeywell 69-1175 HE360A,B Powered Flow-Through Humidifier
The HE360A,B Powered Flow-Through Humidifier works with a warm‑air furnace blower to provide whole‑house humidification and can be integrated with any Honeywell humidity control or the Perfect Climate Comfort Center™. The guide explains the required installation steps, safety cautions, and wiring configurations for proper operation.
Key steps include locating the unit, cutting the opening, securing the housing, connecting the water supply with the included saddle valve, wiring the humidistat or automatic humidity control, and performing a checkout to verify water flow and leak‑free operation.
| Maximum static pressure | 0.4 in. wc |
|---|---|
| Maximum water pressure | 125 psi |
| Ambient temperature range | 32°F (0°C) to 160°F (71°C) |
| Mounting clearance above furnace jacket | at least 3 in. (76 mm) |
| Water supply tubing size | 1/4 in. O.D. copper tubing |
| Drain hose size | 1/2 in. hose |
The humidifier can operate with water pressure up to 125 psi.
It should be mounted at least 3 in. (76 mm) above the furnace jacket.
Both hot and cold water, whether hard or softened, may be used.
No, a current‑sensing relay or sail switch is not needed with the Automatic Humidity Control.
