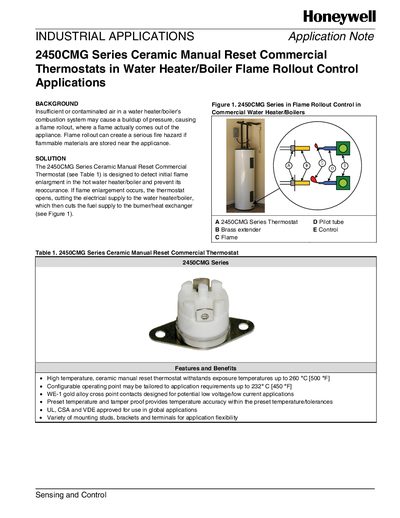

The 2450CMG series ceramic manual reset commercial thermostat is designed to detect and prevent flame enlargement in hot water heaters/boilers, with high temperature resistance and temperature accuracy.
The 2450CMG Series ceramic manual reset thermostat is designed to detect the initial enlargement of a flame in commercial water heaters or boilers. When flame enlargement is sensed, the thermostat opens, cutting electrical power to the heater/boiler and consequently stopping fuel to the burner, preventing a dangerous flame rollout.
The document includes safety warnings that the product must not be used as a safety or emergency‑stop device, and outlines Honeywell's standard warranty terms. It also provides contact information for sales and service support worldwide.
| Maximum exposure temperature | 260 °C (500 °F) |
|---|---|
| Configurable operating point | up to 232 °C (450 °F) |
| Contact type | WE-1 gold alloy cross point contacts |
| Safety approvals | UL, CSA and VDE approved |
| Mounting options | Variety of mounting studs, brackets and terminals |
It opens, cutting the electrical supply to the water heater or boiler, which then cuts the fuel supply to the burner/heat exchanger.
The thermostat can withstand exposure temperatures up to 260 °C (500 °F) and can be set to operate up to 232 °C (450 °F).
Yes, it is UL, CSA and VDE approved for use in global applications.
