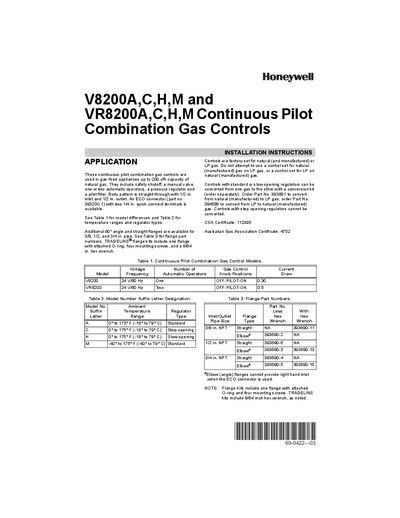

This document provides installation instructions for V8200A, C, H, M and VR8200A, C, H, M Continuous Pilot Combination Gas Controls. These controls are used in gas-fired appliances up to 200 cfh capacity of natural gas. They include safety shutoff, a manual valve, one or two automatic operators, a pressure regulator, and a pilot filter. The controls have a straight-through body pattern with 1/2-inch inlet and outlet. An ECO connector with two 1/4-inch quick connect terminals is available. The controls are factory-set for natural (and manufactured) or LP gas. Controls with standard or slow opening regulators can be converted from one gas to the other with a conversion kit. Controls with step opening regulators cannot be converted.
The Honeywell V8200A and VR8200A continuous pilot combination gas controls are used in gas‑fired appliances up to 200 cfh of natural gas. The manual covers safety shutoff, manual valve, automatic operators, pressure regulator, pilot filter, and optional flanges and adapters.
It provides detailed installation instructions, wiring diagrams, pressure regulator adjustment, gas leak testing, pilot lighting, and service procedures, along with conversion kit information for switching between natural and LP gas.
| Knob Positions | OFF‑PILOT‑ON |
|---|---|
| Standard Regulator Inlet Pressure Range | 5.0‑7.0 kPa |
Order conversion kit part No. 393691 to convert from natural (manufactured) gas to LP gas.
Tighten the flange screws to 25 in‑lb (2.8 N·m).
