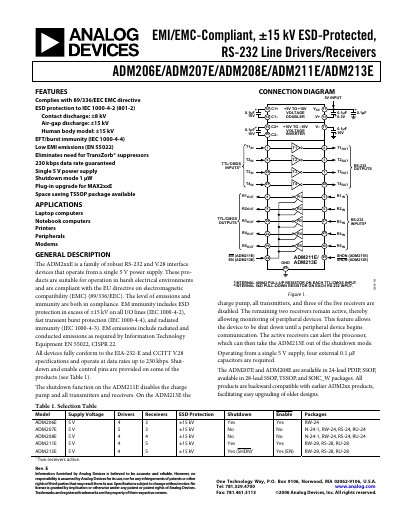

ADM206E/ADM207E/ADM208E/ADM211E/ADM213E are ±15 kV ESD-Protected, RS-232 Line Drivers/Receivers that comply with the 89/336/EEC EMC directive
The ADM206E/ADM207E/ADM208E/ADM211E/ADM213E family are robust RS‑232 and V.28 line drivers and receivers that operate from a single 5 V supply. They comply with the EU EMC directive (89/336/EEC), provide up to ±15 kV ESD protection, and are suited for laptops, printers, modems and other peripheral devices. The devices meet EIA‑232‑E and CCITT V.28 specifications and support data rates up to 230 kbps.
The datasheet details electrical characteristics such as operating voltage range, supply currents, logic thresholds and maximum data rate, as well as pin configurations for each package option. Typical performance graphs, EMC test results, and an ordering guide are included to aid designers in selecting the appropriate package and ensuring reliable operation in harsh electrical environments.
| Operating Voltage Range | 4.5 V – 5.5 V (VCC) |
|---|---|
| Power Supply Current (no load) | 3.5 mA – 13 mA |
| Shutdown Supply Current | 0.2 µA – 10 µA |
| Input Logic Threshold Low (V_INL) | 0.8 V |
| Input Logic Threshold High (V_INH) | 2.0 V |
| TTL/CMOS Output Voltage Low (V_OL) | 0.4 V |
| TTL/CMOS Output Voltage High (V_OH) | 3.5 V |
| Maximum Data Rate | 230 kbps |
| ESD Protection (Human Body Model) | ±15 kV |
The devices support data rates up to 230 kbps.
They provide human‑body‑model ESD protection of ±15 kV.
Shutdown supply current ranges from 0.2 µA to 10 µA.
They operate from a 5 V supply with a tolerance of ±10 % (4.5 V – 5.5 V).
